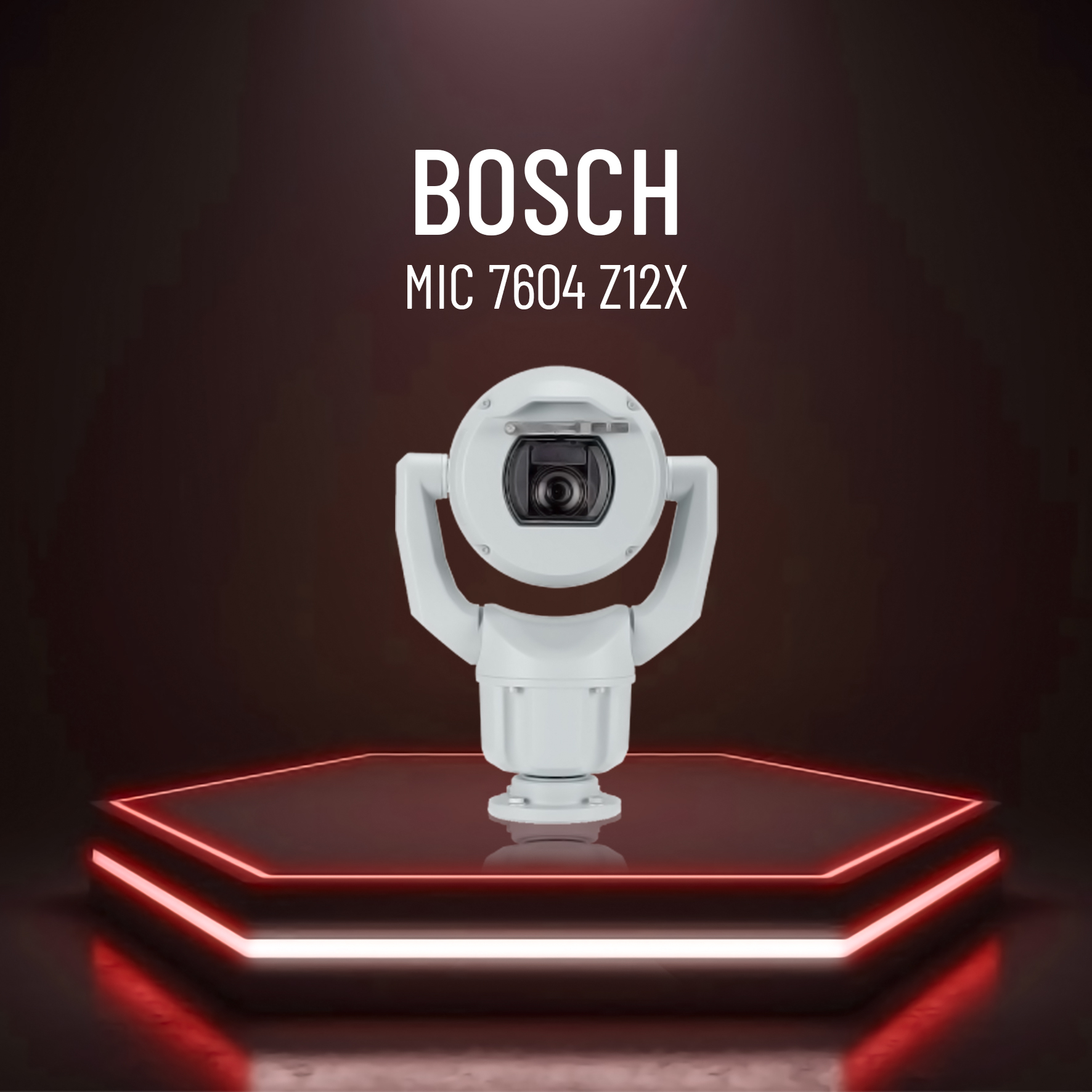

MIC inteox 7100i – MIC 7604 Z12x
Video analytics at the edge
Essential Video Analytics : –
Intelligent Video Analytics : ✓
Bitrate management
Intelligent Dynamic Noise Reduction : ✓
Intelligent streaming : ✓
Compression (H.265 / H.264 & MJPEG) / multi-streaming : ✓ / ✓ / 4 Streams
Basic features
Maximum resolution : 4K UHD
Image sensor type : 1″
Max. frames per second (fps) : 30 fps@ UHD
Indoor / Outdoor : – / ✓
Day / night : ✓
Wide Dynamic Range (WDR) : 62dB
ONVIF conformant : ✓
Built-in microphone : –
Advanced features
Intelligent Auto Exposure / Intelligent Defog : – / ✓
Privacy masking : ✓
Nbr of presets/guard tours : 256/2
Wiper / Built in window defroster : ✓ / ✓
Intelligent Tracking : –
3rd party apps possible : ✓
AI based Object classification detectors : –
Alarm triggering
Tamper detection / Video motion detection : ✓ / ✓
Audio detection : ✓
PTZ Intelligent Tracking : –
Sensitivity
Minimum illumination day mode (color) : 0.292 lux
Minimum illumination night mode (black / white) : 0.0110 lux
Night vision : ✓ (optional illuminator)
Max. range at night : 300 m (984.25 ft)
Lens
Focal length : 9.3 – 111.6 mm
Horizontal Angle of View (HAoV) : 6.1° to 64.6°
PTZ Zoom optical/digital : 12x/12x
Tilt angle : -55° to +90° (upright), -95° to +55° (inverted), -80° to +65° (canted)
DORI distances
Detect / Observe / Recognize / Identify (Distances according to EN-IEC 62676-4 standard) : wide 108-355/43-142/22-71/11-36 | tele 154-504/61-202/31-101/15-50
Storage
Memory card slot : (up to 2TB)
Industrial SD card support with health monitoring : ✓
Cloud application storage : Auto or Alarm JPEG Posting, Video Clips or JPEG Exporting
Connections
Alarm input / output : –
Audio in / out : ✓ / ✓
Hybrid / public view monitor : ✓ (with external decoder) / –
Housing
Weather rating : IP68
Vandal resistant : IK10
Operating temperature : -40° to +65° C, (-40° to +149° F)
Power input voltage
Power over Ethernet / 12V / 24V : ✓ (PoE++) / – / ✓
