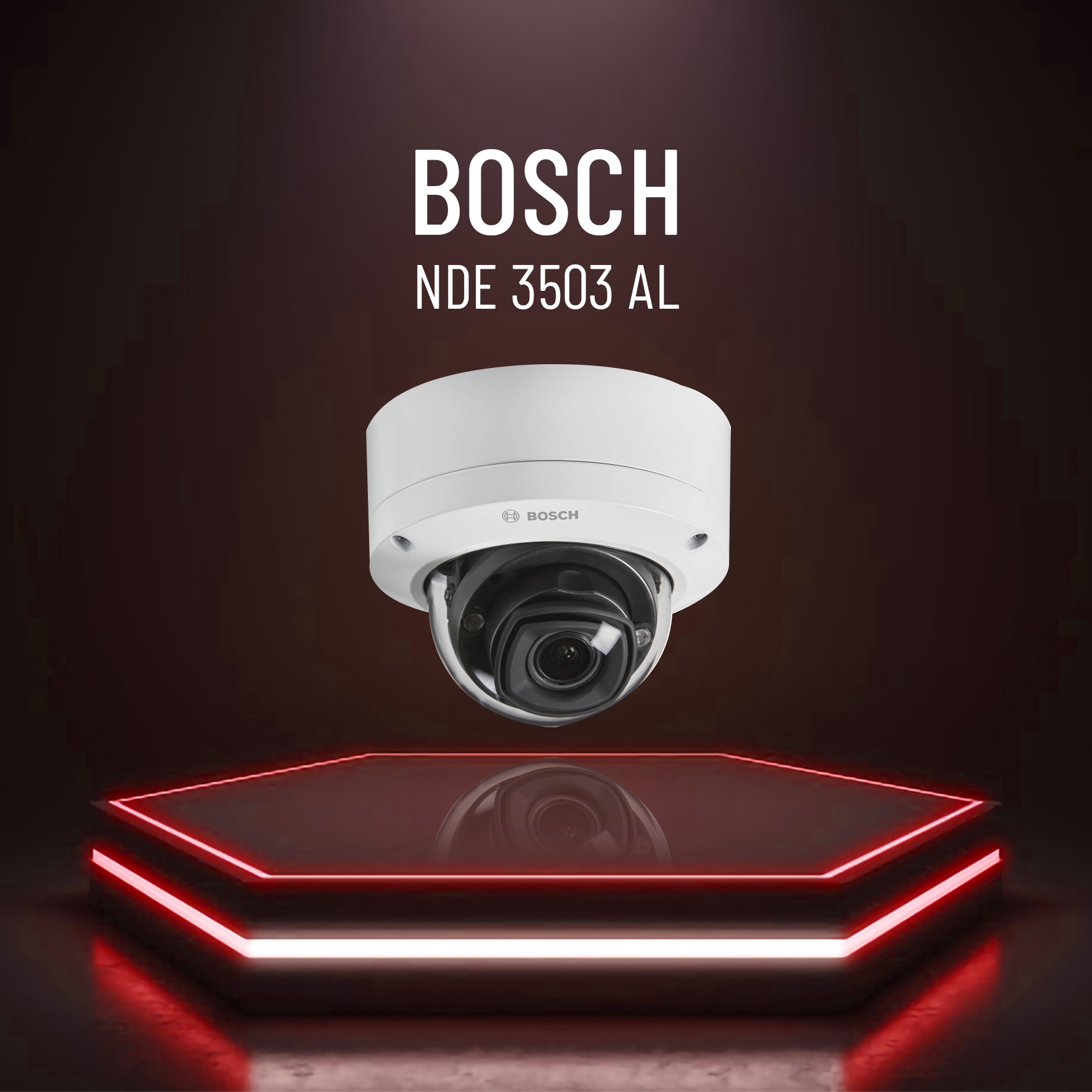

FLEXIDOME IP 3000i IR – NDE 3503 AL
Video analytics at the edge
Essential Video Analytics : ✓
Intelligent Video Analytics : –
Bitrate management
Intelligent Dynamic Noise Reduction : ✓
Intelligent streaming : –
Compression (H.265 / H.264 & MJPEG) / multi-streaming : – / ✓ / 4 Streams
Basic features
Maximum resolution : 5MP
Image sensor type : 1/2.9″ CMOS
Max. frames per second (fps) : 20 fps@5.3MP, 25 fps@4.1MP
Outdoor : ✓
Day / night : ✓
Wide Dynamic Range (WDR) : 120dB
ONVIF conformant : ✓
Built-in microphone : –
Advanced features
Intelligent Auto Exposure / Intelligent Defog : – / –
Privacy masking : ✓
Region Of Interest tracking : ✓
Upright video mode : ✓
Alarm triggering
Tamper detection / Video motion detection : ✓ / ✓
Built-in video analytics : ✓
Audio detection : ✓
Sensitivity
Minimum illumination day mode (color) : 0.5 lux
Minimum illumination night mode (black / white) : 0.2 lux
Night vision : ✓ (infrared)
Max. range at night : 30 m
Lens
Automatic varifocal : ✓
Focal length : 3.2 – 10 mm
Horizontal Angle of View (HAoV) : 30° – 89°
DORI distances
Detect / Observe / Recognize / Identify (Distances according to EN-IEC 62676-4 standard) : 63-141/25-56/13-28/6-14
Storage
Industrial SD card support with health monitoring : ✓
Cloud application storage : Auto or Alarm JPEG Posting, Video Clips or JPEG Exporting
Connections
Alarm input / output : 1 / 1
Audio in / out : ✓ / ✓
Hybrid / public view monitor : – / –
Housing
Weather rating : IP66
Vandal resistant : IK10
Operating temperature : -30° to 50° C (-22° to 122° F)
Power input voltage
Power over Ethernet / 12V / 24V : ✓ / ✓ / –
