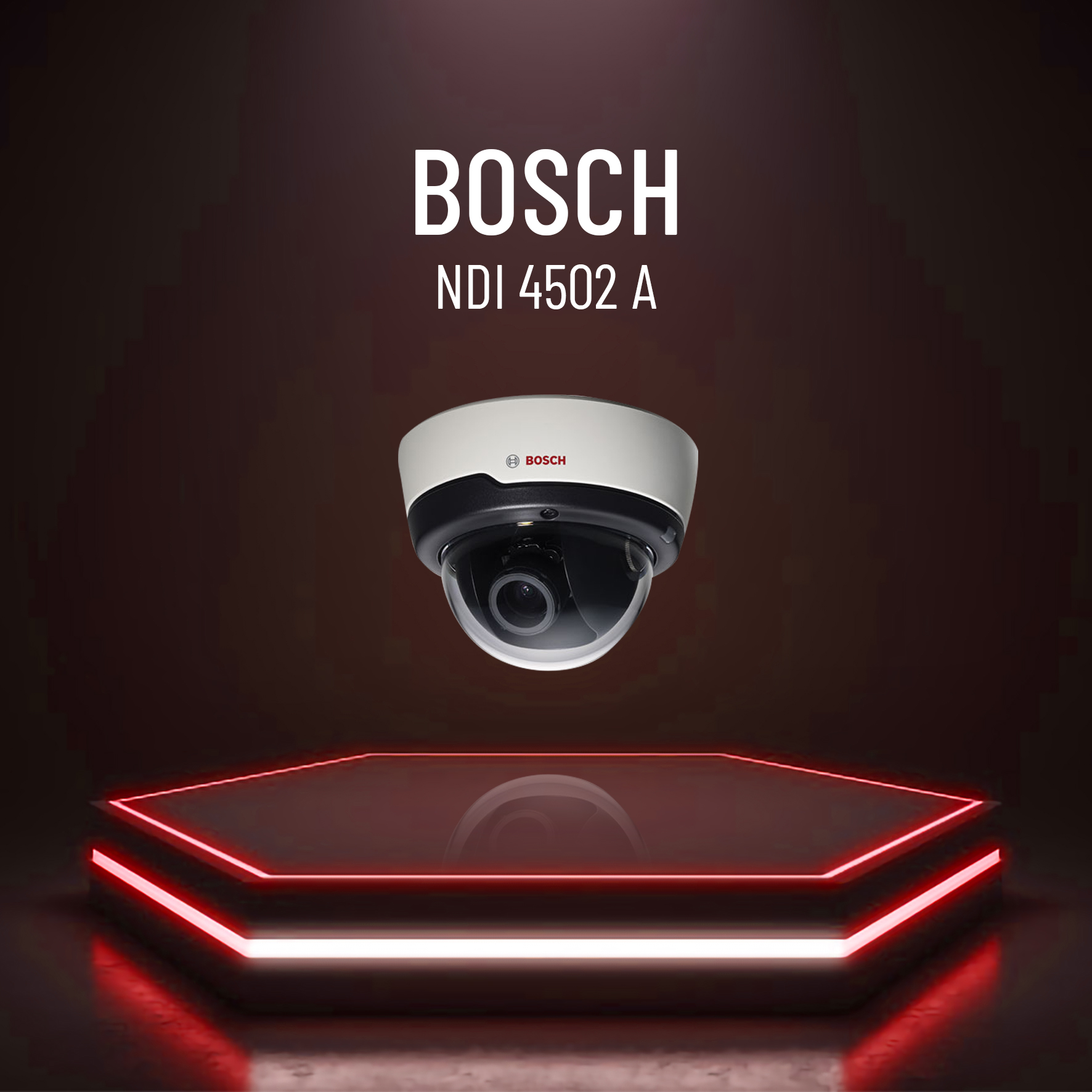

FLEXIDOME IP 4000i – NDI-4502-A
Video analytics at the edge
Essential Video Analytics : ✓
Intelligent Video Analytics : –
Bitrate management
Intelligent Dynamic Noise Reduction : ✓
Intelligent streaming : ✓
Compression (H.265 / H.264 & MJPEG) / multi-streaming : ✓ / ✓ / 4 Streams
Basic features
Maximum resolution : HD 1080p
Image sensor type : 1/2.9″
Max. frames per second (fps) : 30 fps @ 1080p
Indoor : ✓
Day / night : ✓
Wide Dynamic Range (WDR) : 90dB
ONVIF conformant : ✓
Built-in microphone : ✓
Advanced features
Intelligent Auto Exposure / Intelligent Defog : – / ✓
Privacy masking : ✓
Region Of Interest tracking : –
Upright video mode : ✓
Alarm triggering
Tamper detection / Video motion detection : ✓ / ✓
Built-in video analytics : ✓
Audio detection : ✓
Sensitivity
Minimum illumination day mode (color) : 0.1 lux
Minimum illumination night mode (black / white) : 0.02 lux
Night vision : –
Max. range at night : –
Lens
Automatic varifocal : ✓
Focal length : 3 – 10 mm
Horizontal Angle of View (HAoV) : 37° – 106°
DORI distances
Detect / Observe / Recognize / Identify (Distances according to EN-IEC 62676-4 standard) : 32-126/13-50/6-25/3-13
Storage
Industrial SD card support with health monitoring : ✓
Cloud application storage : Auto or Alarm JPEG Posting, Video clips or JPEG Exporting
Connections
Alarm input / output : 1/1
Audio in / out : ✓ / ✓
Hybrid / public view monitor : ✓ / ✓
Housing
Weather rating : –
Vandal resistant : IK04
Operating temperature : -20° to 50° C (-4° to 122° F)
Power input voltage
Power over Ethernet / 12V / 24V : ✓ / ✓ / ✓
