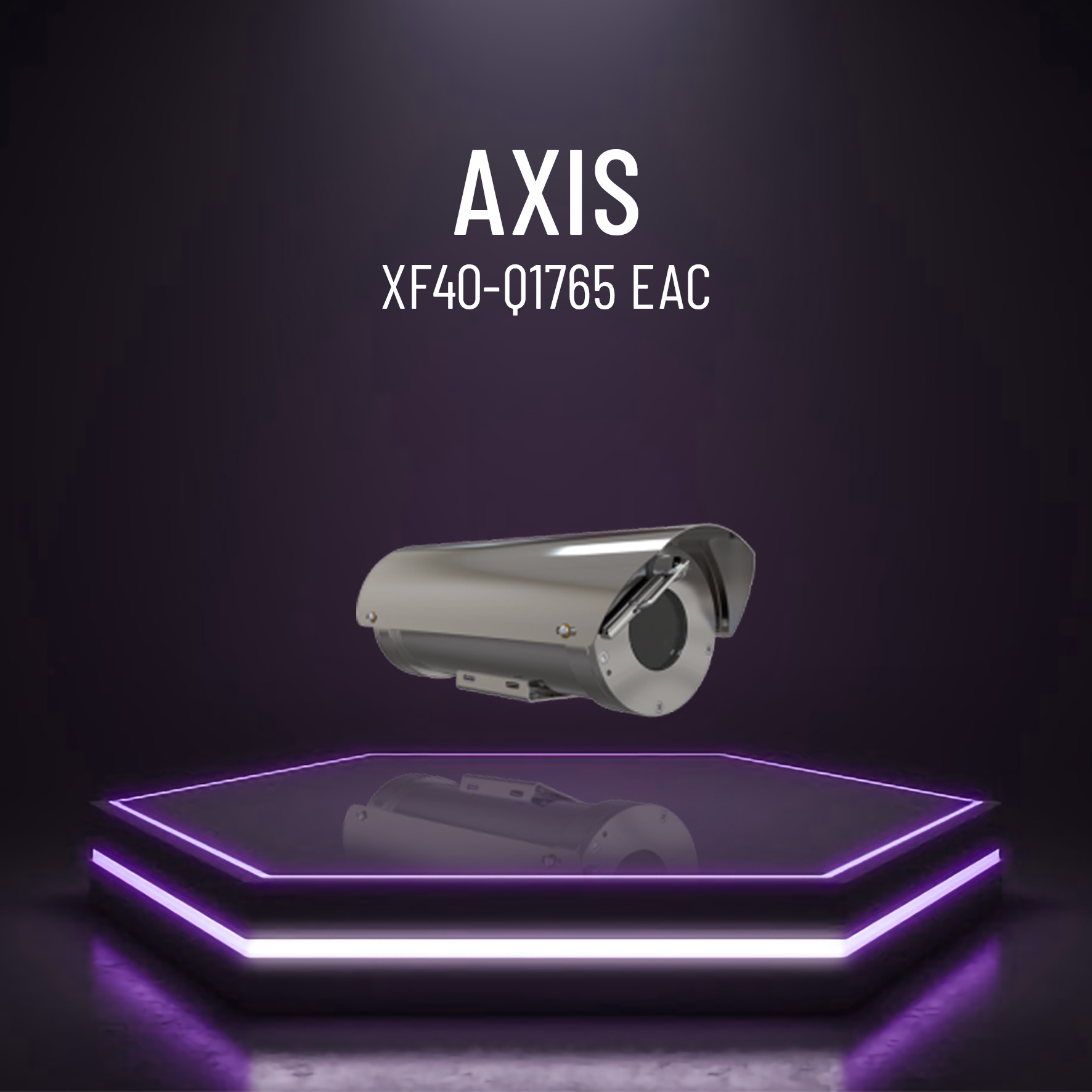

XF40-Q1765 Explosion-Protected Network Camera terdiri dari varian yang berbeda, disertifikasi untuk area berbahaya sesuai dengan peraturan berbeda yang berlaku di berbagai negara. Tergantung pada variannya, fitur kamera mungkin berbeda. Misalnya model bersertifikasi UL, XF40-Q1765 -50 C UL, menawarkan tiga entri saluran NPT 3/4 “, sedangkan model XF40-Q1765 dan XF40-Q1765 -60 C menawarkan tiga entri saluran M20. Semua versi XF40-Q1765 memiliki input daya AC 24 V. Untuk informasi lebih lanjut, periksa lembar data khusus produk.
Camera
| Image sensor |
CMOS |
| Image sensor size |
1/2.9 |
| Sensor size in megapixel |
2.0 |
| Lightfinder |
– |
| Wide dynamic range |
Dynamic Contrast |
| Min illumination/ light sensitivity (Color) |
0.50 lux |
| Min illumination/ light sensitivity (B/W) |
0.04 lux |
Video
| Max video resolution |
1920×1080 |
| Max frames per second |
25/30 |
| Electronic image stabilization |
– |
Lens
| Focal length |
4.7 – 84.6 mm |
| Optical zoom |
18 |
| Horizontal field of view |
59 – 4 ° |
| Vertical field of view |
35-2 ° |
Compression
| Zipstream |
– |
| H.264 |
Baseline, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Security
| Signed firmware |
– |
| Secure boot |
– |
| TPM |
– |
General
| Remote focus |
– |
| Remote zoom |
– |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
Yes |
| IP rating |
IP66, IP67, IP68 |
Power
| Power (max) |
– |
| Power (average) |
– |
| DC input voltage |
– |
| AC input voltage |
20-28 V |
